ZE35GU

Mini excavator
  • Operating weight
    3790 kg
  • Rated power
    18.5 Kw
  • Standard capacity
    0.11 m³
  • Maximum digging radius
    5525mm
  • Maximum digging depth
    3003mm
  • Maximum dumping height
    3438mm

ADVANTAGE INTRODUCTION

  • Standard TOPS/FOPS safety cab;
  • Adopt customized load-sensitive hydraulic system to improve the micro-controllability and digging force of the whole machine by 8%;
  • The whole machine realizes tailless rotation, which is more suitable for narrow space construction.

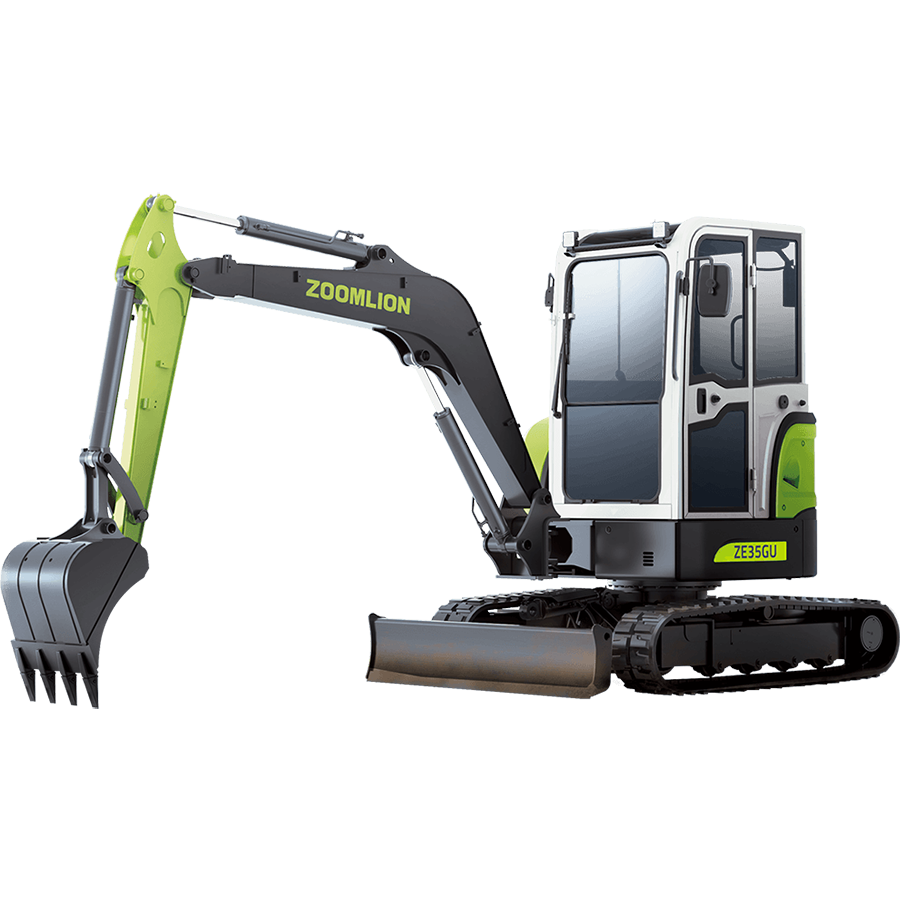

This is a new generation of micro excavation product ZE35GU launched by Zoomlion. This product focuses on the design concept of flexibility, efficiency, reliability and durability, safety and comfort, and convenient maintenance, and fully draws on the excavator experience in the industry and global research. This new product developed by Platform Resources.

Cab

  • The cockpit is fully sealed to ensure thermal insulation and sealing in the cab and improve comfort.
  • It is equipped with suspension seats. Centralized arrangement of operations help reduce driving fatigue.
  • Brand-new cab, 360-degree operation field of vision, spacious space.
  • New switch integration and function buttons make operations simple and convenient.
  • It is equipped with 5.7-inch LCD color screen and a brand-new human-computer interactive operating system, which features rich functions and simple and easy use.
  • The self-developed brand-new air conditioning system with the cooling and heating functions and internal and external circulatory system provides better comfort.
  • OPG/TOPS/ROPS safe cab as standard configuration.

Power system, Hydraulic System

  • It is equipped with Kubota 18.5KW high-power engine.
  • It is equipped with a customized load-sensitive hydraulic system, which can adjust flow and pressure at any time to achieve perfect handling performance.
  • With the large-angle fully open tail hood, all maintenance points of the power system are accessible by standing.
  • The centralized layout of the grease fillers of the slewing bearing, the slewing motor anddeflection cylinder is convenient for one-time filling of grease.

Undercarriage

  • Integral welded turntable, X-shaped reinforced frame, and large-section working device improve the service life.
  • Reasonable structural layout improves the stability of the excavator.
  • The layout of the tail space is optimized, the real tailless slewing is realized, and it is more suitable for the construction in anarrow space.

Working equipment (boom, stick, bucket)

  • The hinged points of the working device are arranged on one side, which is simple and convenient for filling grease.
  • It can be equipped with crushing pipeline, auxiliary equipment pipeline, hydraulic quick-change lock pipeline, electricproportional lever, etc., to meet the user's use in the working conditions of hoisting, digging, loading and unloading, crushing.
  • A large-angle left and right deflection working device is designed, which has stronger workability and realizes corner operation.
